NBSANMINSE SJR 0.3Mpa 2 Liter Thin oil Lubrication Pump Automatic Intermittent Plunger AC110V AC220V

Name: NBSANMINSE SJR 03Mpa 2 Liter Thin oil Lubrication Pump Automatic Intermittent Plunger AC110V AC220V
Brand: NBSANMINSE
Price: 1 USD

Brand Name : NBSANMINSE

Model Number : SJR

Certification : ISO9001

Place of Origin : NINGBO

MOQ : 20

Price : Negotiation

Payment Terms : L/C, T/T, Western Union

Supply Ability : Negotiation

Delivery Time : Negotiation

Packaging Details : Plastic Bags , Boxes , Carton , Pallet or As Customer Advice

Rated discharge : 2.5~5.5 (Adjustable amount of oil) ( mL/times)

MAX. pressure : 0.3 MPa

Oil tank capacity : 2.0 L

Voltage : AC110 V, AC220 V

Frequency : 50 Hz

Power : 2.5 W

Contact Now

NBSANMINSE SJR 0.3Mpa 2 Liter Thin oil Lubrication Pump Automatic Intermittent Plunger AC110V AC220V

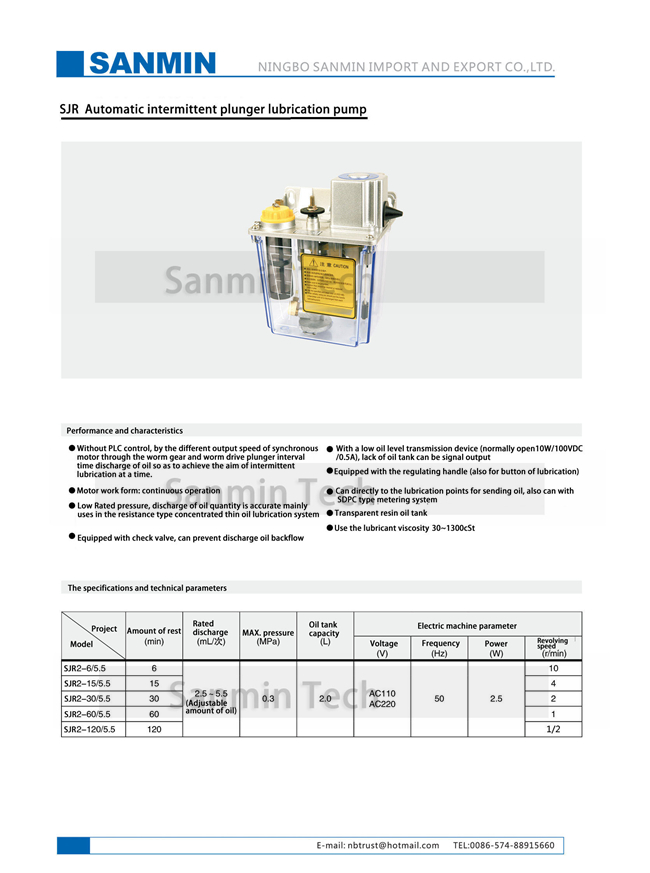

Performance and characteristics

. Without PLC control, by the different output speed of synchronous motor through the worm gear and worm drive plunger interval time discharge of oil so as to achieve the aim of intermittent lubrication at a time.

. Motor work from : continuous operation

. Low Rated pressure, discharge of oil quantity is accurate mainly uses in the resistance type concentrated thin oil lubrication system

. Equipped with check valve, can prevent discharge oil backflow

. With a low oil level transmission device (normally open 10W/100VDC/0.5A), lack of oil tank can be signal output

. Equipped with the regulating handle (also for button of lubrication)

. Can directly to the lubrication points for sending oil, also can with SDPC type metering system

. Transparent resin oil tank

. Use the lubricant viscosity 30~1300cSt

Project	Amount of rest (min)	Rated discharge (mL/times)	MAX. pressure (Mpa)	Oil tank capacity (L)	Electric machine parameter
					Voltage (V)	Frequency (Hz)	Power (W)	Revolving speed (r/min)
Model
SJR2-6/5.5	6	2.5~5.5 (Adjustable amount of oil)	0.3	2	AC110 AC220	50	2.5	10
SJR2-15/5.5	15							4
SJR2-30/5.5	30							2
SJR2-60/5.5	60							1
SJR2-120/5.5	120							1/2
