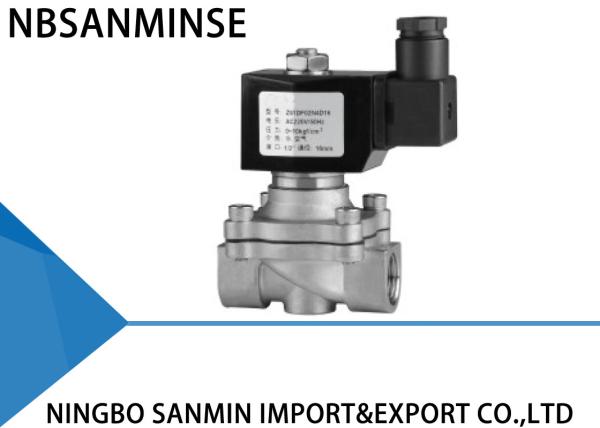

Z4 Stainless Steel Solenoid Valves For Water , Direct Acting Solenoid Valve
Applicability :
1 . The pipeline fluid must same as solenoid valve marked medium .
2 . Fluid temperature must be less than the marked temperature .
3 . If fluid is not high cleanliness , should be installed a filters in front of the solenoid
valve , general solenoid valve is better claim to medium cleanness
4 . Pay attention to the orifice and port size ; usually only open and close two type ; Conditions permit , please install bypass pipe , easy maintenance ; When there is water drain to customize solenoid valve opening and closing time regulation .
5 . Pay attention to the environmental temperature on the influence of solenoid valve .
6 . Power supply current and power consumption should be selected according to the output
capacity , power supply voltage generally allow + / - 10 % , must pay attention to AC starting the VA value is higher .
Reliability :
Ction time is very short at high frequency generally choose directly acting , large diameter
choose fast series .
Security :
General solenoid valve is not waterproof , when needs waterproof model , we can be customized .
Nominal pressure solenoid valve of the highest calibration must be more than the highest pressure in the pipeline , otherwise life will shorten or other unexpected circumstances .
Details
1: 2 - Way normally closed solenoid valve , Closed when de - energized , open when energized .
2: Body material : 304 stainless steel and 316 stainless steel .
3: Fluids Temp : 0 ℃ ~ 120 ℃ ; Ambient Temp . 0 ℃ ~ 65 ℃
4: Serialized products , small in size , large flow rate , widely use .
5. Flow as the arrow , mouts in any position ; Best position is Solenoid Vertical and upright direction .
6: Voltage : 220VAC / 230VAC / 240VAC / 110VAC / 24VAC 50 / 60 HZ 24VDC / 12VDC ;
vOLTAGE tOLERANCE : + 10 % TO - 10 % applicable voltage
7: Coil can fix Germany Nass Coil , for orifice under DN25 only .
8: This series valves are offered NBR ` VITON ` EPDM etc for Seals and diaphragm to provide on - off conerol of various fluids .
9 : Coil can fix SM Coil below DN25 . AC 220V / AC110V / AC24V / DC24V .
Why choose us
1: Large stock for fast shipping .
2: High quality with competitive price .
3: Sample order & small quantity order is acceptable .
4: Reliable quality assured and active after-sell service
5: One year quality guarantee
FAQ
Q: How much is our minimum order quantity ?
A: Our minimun quantity is 1 Piece .
Q: Could you offer the free samples ?
A: Yeah, we could offer the free samples for the massive products .
Q: What ' s your business scope ?
A: Our business scope is air cylinder , air source treatment , air solenoid valve , motorize valve , pneumatic valve , quick fitting , etc .
Q: What ' s your delivery date ?
A: It depends on the number of orders . Delivery date is 7 - 30 days . If you need emergency products , we can speed up the production of the first arrangement .
Q: What is the price of the product ?
A: Our prices are based on the size and type of material , if you can give me the information ,
then we can give you an estimated price is for reference only . We can do any size and any color .
Q: Can the product be made with our logo and brand ?
A: Yes , of course , we can make . we are OEM supplier for years and professional to make . But you need give us the authorization if it is possible .
Our products are high quality with 12 month guarantee ,and support paypal payment.
Product Tags:
|
|
Z4 Stainless Steel Solenoid Valves For Water Direct Acting Solenoid Valve Images
|
